ROLLING MILL

The rolling mill of Erbil Steel Company has been built over a closed area of 8,000 m2 with a rolling speed of 7 m/sec and monthly capacity of 20,000 tons, our rolling mill is operated by 104 experienced engineers, technicians and other workers to produce world class N12-N32 mm construction steel.

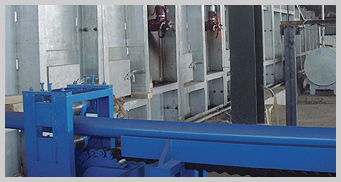

Furnace A 30 ton/hr capacity reheating furnace in our rolling mill tempers the internally produced billets and sends them to the flow for the production.

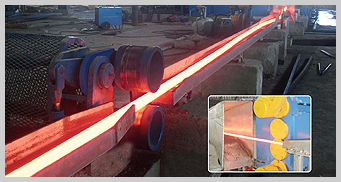

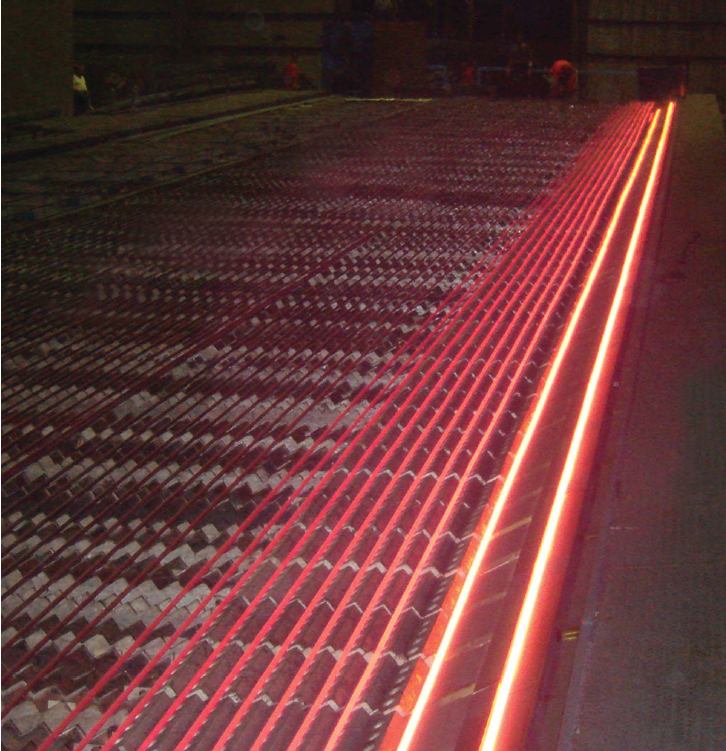

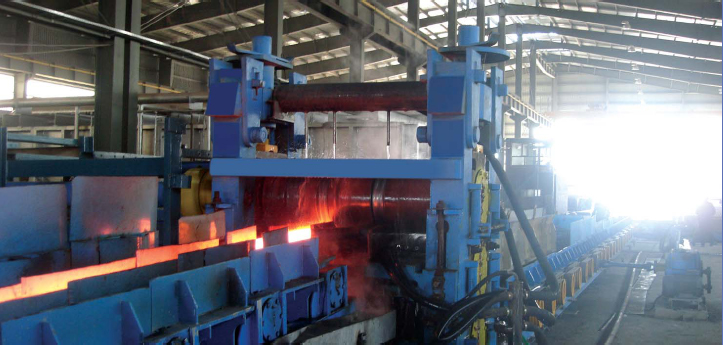

Rolling mill Line This unit consists of 3 group preparation benches, 42 meter long natural cooling grill and a cold cutter with a capacity of 100 tons.Rolling mill line is fully automatic right after from the billet charging up to packing area.    Bar Mill  Diameter  13 - 32 mm  Surface  Plain & Deformed  No Of Strands  2  Billet Weight  500 kg  Rolling Speed  7 mm / sec  Capitalicy of Rehaating Furnece  30 t / h pusher type  No Of Passes  15  Main Products  Plain & Deformed

Packing Using a fully automated system, we can package from 6-12 meters in length and up to 3 tons of weight, depending costumer requirements.

Storage and Shipment We can store 8,000 tons of products in a closed area of 2,000m2. Deformed reinforced bars Diameter: 12mm-32mm Length     : any length from 0.5m-12 meters. Packing    : in bundles of 2,000kg
